Description

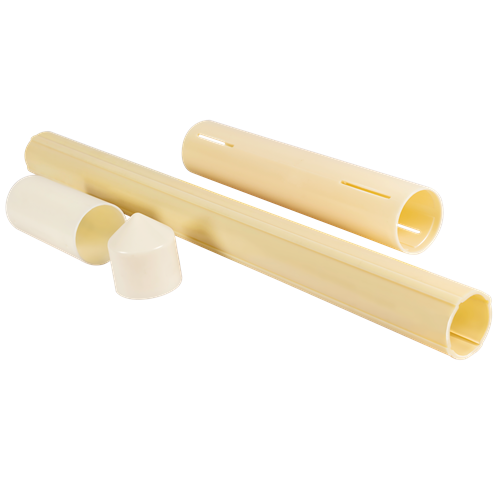

Inclinometer Access Tubes and Accessories – Model EAN-AT Series
The EAN-AT series of inclinometer access tubes provide a stable and durable guide path for in-place and portable inclinometers used to monitor lateral ground and structural movements.
These self-aligning ABS casings are designed with precision keyways at 90° intervals to ensure accurate and repeatable probe orientation.
The inclinometer casings can be:
-
Installed vertically or inclined in a borehole,
-
Embedded in fill or concrete during construction, or
-
Mounted on structural surfaces such as retaining walls or tunnel linings.
Each standard tube is 3 m (≈9.85 ft) in length, with fixed or telescopic couplings that ensure watertight connections. Joints are secured with pop rivets and sealed with mastic and BOPP tape, maintaining long-term protection against groundwater ingress and deformation.
Specifications
| Parameter | Details |
|---|---|
| Instrument Name | Inclinometer Access Tube |
| Model Series | EAN-AT |
| Material | High-strength ABS (self-aligning) |
| Standard Length | 3 m (≈9.85 ft) |
| Outer Diameter | 70 mm (standard) |
| Inner Diameter | 58 mm |
| Keyways | 4 longitudinal grooves at 90° spacing for orientation |
| Waterproofing | Mastic tape and BOPP sealing tape |
| Optional Size | 85 mm o.d., 77 mm i.d. (on request) |
| Couplings | Fixed (EAN-FC70) or telescopic (EAN-TC70) |
| Temperature Range | −20 °C to +80 °C |
| Applications | Boreholes, embankments, retaining walls, concrete structures |
Available Models & Accessories
| Item | Description |
|---|---|
| EAN-AT70 | Self-aligning ABS access tube, 70 mm o.d., 58 mm i.d., 3 m length |
| EAN-FC70 | Fixed coupling, ABS, 77 mm o.d. × 160 mm length |
| EAN-TC70 | Telescopic coupling, ABS, 77 mm o.d. × 300 mm length, accommodates 150 mm displacement |
| EAN-EC70 | ABS end cap for 70 mm tube (top or bottom) |
| EAN-TT70 | Lockable ABS top cap for 70 mm tube |
| EAN-PC | Protective cover for top of access tube |
| Pop Rivets / Screws | Packs of 100 pcs for fixed and telescopic couplings |
| Pop Rivet Gun | Manual handheld tool for on-site installation |
| Power Drill | 230 V, 50 Hz with 3.2 mm drill bits |
| Mastic Tape | 50 mm × 10 m for sealing joints |
| BOPP Tape | 50 mm × 30 m for casing sealing |
Key Features / Advantages
-
Accurate alignment with 90° keyways for repeatable probe readings
-
Watertight and deformation-resistant joints for long-term performance
-
Easy field assembly using rivets and mastic sealing
-
Available in standard and telescopic configurations to accommodate settlement or expansion
-
Optional larger-diameter casings available on request
-
Fully compatible with EAN-56 In-Place Inclinometer System and portable inclinometers
