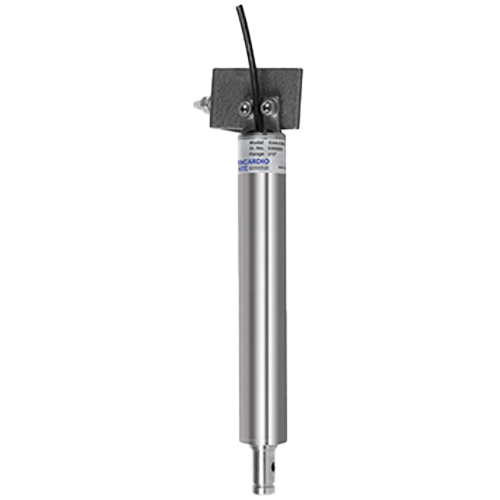

High-Precision Tilt Meter – Model EAN-90M
The Encardio-rite Model EAN-90M Tilt Meter is a high-resolution, rugged instrument designed for precise monitoring of inclination and vertical rotation in civil and geotechnical structures.
It provides accurate, stable, and long-term performance in applications such as buildings, retaining walls, bridges, tunnels, dams, foundations, and slopes.
This model is particularly suited for environments requiring high accuracy, excellent temperature stability, and robust construction — offering reliable measurements even under demanding site conditions.
System Overview
The EAN-90M tilt meter employs a high-precision MEMS sensor housed inside a stainless steel enclosure, hermetically sealed using electron beam welding under a vacuum of 0.001 Torr (1/1000 Torr).
This manufacturing technique eliminates oxidation, moisture ingress, and long-term drift, ensuring exceptional stability and repeatability.
The tilt meter can be mounted on vertical or horizontal surfaces using an adjustable bracket and anchor system. Any structural movement changes the instrument’s inclination, resulting in a proportional change in the voltage output.
Successive readings allow users to track deformation trends and detect permanent displacement over time.
Specifications
| Parameter | Details |
|---|---|
| Instrument Name | Tilt Meter |
| Model | EAN-90M |
| Sensor Type | MEMS |
| Measured Parameter | Tilt / Angular displacement |
| Range | ±15° (standard) |
| Resolution | 0.001° |
| Accuracy | ±0.02° |
| Output | Differential Voltage |
| Power Supply | 12 V DC nominal |
| Temperature Stability | Excellent (electron beam welded vacuum housing) |
| Operating Temperature | −20 °C to +80 °C |
| Material | Stainless Steel (Electron Beam Welded) |
| Enclosure Rating | IP-68, waterproof and corrosion resistant |
| Mounting Options | Horizontal or vertical using adjustable bracket |
| Compatibility | Compatible with Encardio-rite automatic data acquisition systems (ESDL series) |
