Description
Model: EAWS-101
Automatic Web-Based Weather Monitoring Station

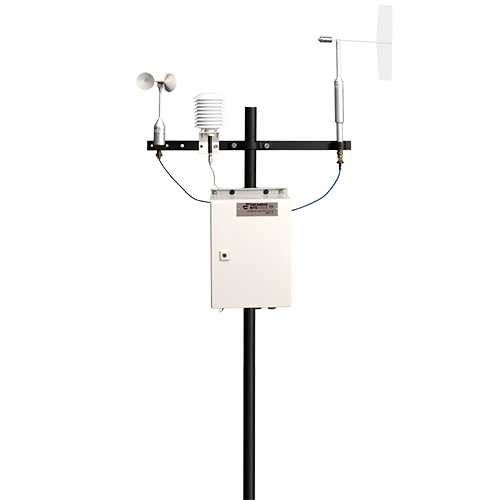

The Encardio-rite EAWS-101 is an automatic, web-enabled weather monitoring station designed to provide precise, reliable, and cost-effective measurement of meteorological parameters in real time. The system integrates high-quality sensors, advanced data processing, and remote communication capabilities, making it ideal for environmental, hydrological, agricultural, and infrastructure monitoring applications.
The EAWS-101 continuously measures key weather parameters such as rainfall, temperature, humidity, wind speed, wind direction, solar radiation, barometric pressure, and evaporation rate. Data is automatically collected, processed, and transmitted to a central server or cloud platform, where it can be viewed through a secure web interface in graphical or numerical formats.
The system can be custom-configured to include additional sensors based on project-specific requirements. Each sensor and module is engineered for long-term reliability and high accuracy, even under extreme environmental conditions.
Standard Sensors
| Parameter | Sensor Type / Description |
|---|---|
| Rainfall | Tipping-bucket rain gauge (ERG-200/201 series) |
| Wind speed & direction | Cup & vane type or ultrasonic sensor (optional) |
| Temperature & humidity | Integrated sensor for air temperature and relative humidity |
| Solar radiation | 1) Silicon photovoltaic detector in cosine-corrected head 2) Thermopile sensor protected by glass dome (high-precision option) |
| Evaporation | Pan-type evaporation meter |
| Air / barometric pressure | High-precision digital barometric pressure sensor |
System Overview
-
Automatic measurement, logging, and transmission of weather data
-
Web-based monitoring via secure cloud interface
-
Configurable measurement frequency and data intervals
-
Data visualization in graphical and tabular formats
-
Real-time alerts and alarms (threshold-based notifications)
-
Low power consumption with solar panel and battery backup options
