Dynamic Strain Gauge – Model EDS-40D

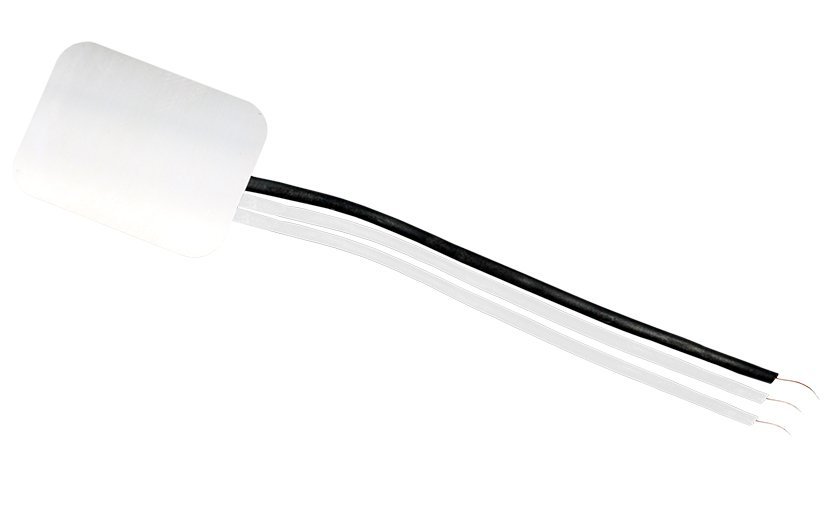

The EDS-40D weldable strain gauge is a high-precision dynamic strain sensor engineered for monitoring fast or cyclic strain variations in steel and concrete structures.
With its high-frequency response and robust stainless-steel construction, the gauge provides reliable measurement of dynamic stress and vibration in bridges, tunnels, cranes, pipelines, and heavy civil engineering applications.
The sensor is electron-beam welded to ensure complete hermetic sealing and long-term stability under harsh field conditions. It can be arc-welded or bonded to the structure’s surface and is compatible with most dynamic data acquisition systems.
Specifications
| Parameter | Details |
|---|---|
| Instrument Name | Dynamic Strain Gauge |
| Model | EDS-40D |
| Sensor Type | Weldable electrical resistance strain gauge |
| Measurement Range | ±1500 µstrain |
| Active Gauge Length | 140 mm |
| Sensitivity | 1 µstrain |
| Temperature Range | −10 °C to +80 °C |
| Protection | IP68, hermetically sealed |
| Construction | Stainless-steel body, electron-beam welded |
| Cable Connection | Glass-to-metal sealed solder-pin connector |
| Thermistor | YSI 44005 or equivalent |
| Frequency Response | High – suitable for dynamic stress monitoring |
| Mounting Method | Weldable on steel or structural surfaces |
Key Features / Advantages
-
High-frequency response for dynamic strain and stress analysis
-
Hermetically sealed stainless-steel body ensures long-term stability
-
Compatible with automated data acquisition systems
-
IP68-rated waterproofing for reliable outdoor operation
-
Simple weld-on installation for field or laboratory use
