Description
Horizontal Digital Inclinometer System – Model EAN-26M-H
The EAN-26M-H is one of the most advanced MEMS-based digital horizontal inclinometer systems designed for the precise measurement of horizontal ground and structural movement, including settlement and heave in storage tanks, foundations, embankments, landfills, and similar applications.
The system utilizes an Android-based mobile phone as a powerful readout and data storage unit, providing high computational capacity and a high-resolution display for field data visualization.
By recording displacement and variation over time, the EAN-26M-H delivers quantitative insight into settlement patterns and the effectiveness of construction control measures.
System Overview

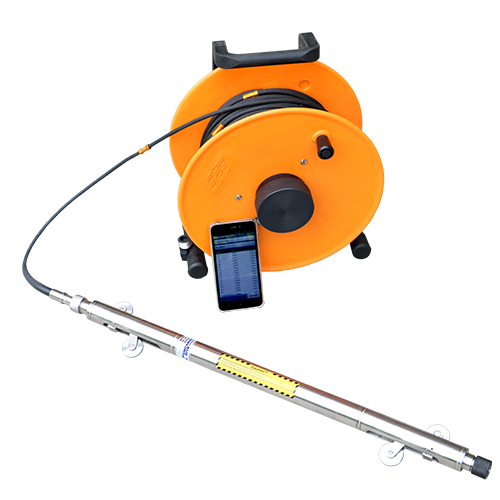

The EAN-26M-H horizontal inclinometer system comprises:
-
A traversing-type digital tilt-sensing probe
-
A Bluetooth-enabled cable reel unit with a rechargeable power source
-
An Android mobile phone acting as the data logger and readout interface
During operation, the probe is inserted through horizontally installed inclinometer access tubing, taking readings at fixed depth intervals from one end.
A second measurement run from the opposite end allows the system to eliminate offset errors, ensuring maximum accuracy.
The embedded processor within the probe converts measurements into direct digital displacement values in engineering units. The data is transmitted wirelessly via Bluetooth to the mobile device, where it is displayed instantly for on-site verification and stored for later analysis.
Specifications
| Parameter | Details |
|---|---|
| Model | EAN-26M-H |
| Sensor Type | Uniaxial MEMS tilt sensor |
| Measuring Range | ±30° |
| Distance Between Wheels | 500 mm (Metric standard) / 2 ft (Imperial on request) |
| Resolution | ±0.008 mm / 500 mm (±0.0004 in / 2 ft) |
| System Accuracy | ±2 mm / 30 m (±0.1 in / 100 ft) |
| Operating Temperature | −20 °C to +80 °C |
| Power Supply | Rechargeable lithium battery (reel integrated) |
| Data Transfer | Wireless Bluetooth to mobile phone |
| Readout Interface | Android application (real-time graphing & data storage) |
| Probe Construction | Stainless steel, rugged field design |
| Cable | 6 mm Ø Kevlar-reinforced polyurethane sheathed, stretch-proof |
