Description
Model: ETT-10TH

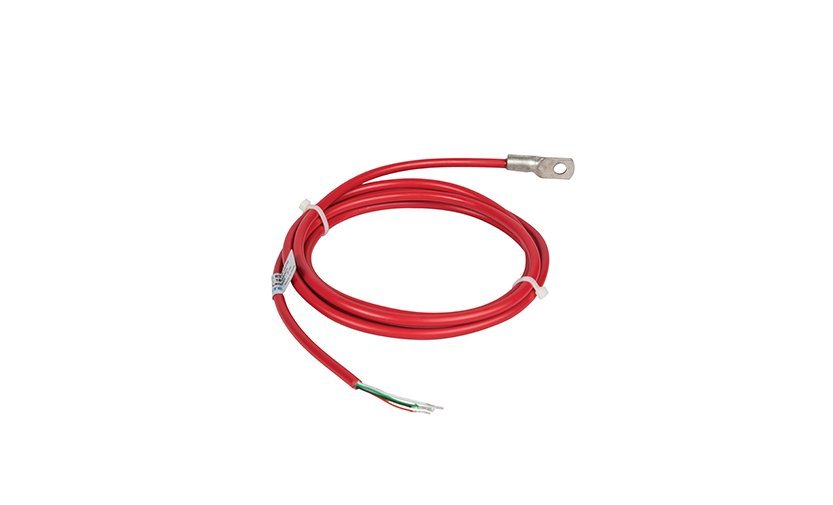

The ETT-10TH Thermistor Probe is a high-precision temperature sensor designed for measuring surface and internal temperatures of steel and concrete structures, as well as for reliable performance underwater. Its low-mass, waterproof construction ensures a fast thermal response and stable readings even in variable field conditions.
This sensor employs an R-T curve matched NTC thermistor (equivalent to YSI 44005), offering excellent accuracy and repeatability across a wide temperature range. The probe features a flat sensing tip that can be securely attached to metal or concrete surfaces, or embedded within concrete to monitor temperature gradients during curing and operation.
Thanks to its compact design, the ETT-10TH is suitable for both permanent installations and temporary field measurements, providing dependable performance in civil, geotechnical, and hydraulic structures.
Specifications
-
Instrument type: Thermistor Probe
-
Sensor type: R-T curve matched NTC thermistor (YSI 44005 equivalent)
-
Configuration: Flat-tip probe suitable for surface mounting or embedment
-
Application: Monitoring surface and internal temperatures of steel and concrete structures, including underwater applications
-
Measured parameter: Temperature
-
Measuring range: −20 °C to +80 °C
-
Testing & calibration: Accuracy test performed for each sensor
-
Key features:
-
High precision and fast thermal response
-
Low-mass waterproof design for stable, repeatable readings
-
Can be mounted on surfaces or embedded in concrete
-
Cost-effective and durable solution for long-term monitoring
-
-
Protection: IP-67 — water-resistant for surface and submerged use
-
Dimensions: 16 mm × 46 mm
