Description

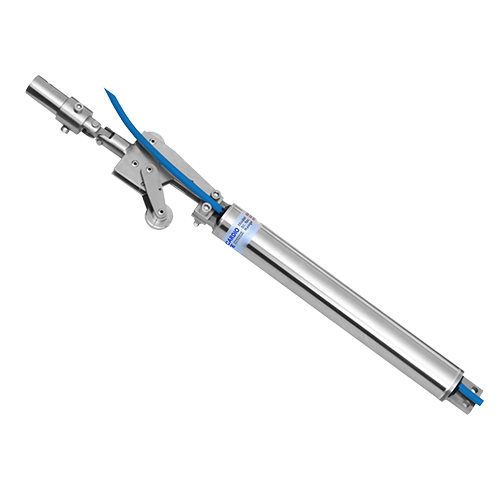

Wireless In-Place Inclinometer (IPI) System – Model EAN-56
The EAN-56 is an advanced wireless in-place inclinometer system engineered to monitor lateral ground and structural movements with high precision.
It is ideally suited for real-time deformation monitoring of slopes, retaining walls, tunnels, deep excavations, embankments, and other critical infrastructure projects where early warning and risk mitigation are essential to protect lives and assets.
The system comprises an array of digital inclination sensors installed within an inclinometer casing. Each sensor measures tilt at its fixed depth, and collectively, the array provides a complete deformation profile of the structure or soil mass.
The EAN-56 integrates wireless communication technology for efficient data transmission. Each sensor chain connects to a wireless node, which transmits recorded data via long-range radio frequency (RF) to a gateway. The gateway then uploads the information to a cloud-based or central monitoring platform, enabling seamless remote access and analysis.
With support for both SDI-12 and Modbus protocols, the EAN-56 offers exceptional versatility for integration with a wide range of dataloggers and automated monitoring systems.
Specifications
| Parameter | Details |
|---|---|
| Instrument Name | Wireless In-Place Inclinometer (IPI) System |
| Model | EAN-56 |
| Sensor Type | MEMS tilt sensors (digital) |
| Applications | Monitoring lateral displacement in slopes, excavations, embankments, retaining walls, tunnels |
| Measured Parameter | Lateral movement / inclination |
| Output Interface | SDI-12 and Modbus (RS-485) |
| Wireless Network | Long-range RF communication to Gateway |
| Power Supply | Battery-powered wireless nodes |
| Cable Connection | Single 3-conductor bus cable (daisy chain configuration) |
| Temperature Range | −20 °C to +80 °C |
| Protection | IP-68, suitable for buried or submerged installation |
| Data Access | Real-time cloud-based monitoring via Gateway |
Key Features / Advantages
-
Completely wireless configuration, minimizing cabling and installation complexity
-
Real-time data acquisition and transmission for immediate risk response
-
Daisy-chain sensor connection reduces borehole crowding and simplifies deployment
-
Independent sensor articulation prevents measurement interference between sensors
-
Dual communication protocol (SDI-12 / Modbus) for universal system compatibility
-
Cloud-integrated platform for remote visualization, analysis, and alerts
-
Designed for long-term stability and high reliability in harsh environments
