Description
Model: ESMP-10
Surface Settlement Point for Embankment and Ground Monitoring
The Encardio-rite ESMP-10 Settlement Point is a precision instrument designed for monitoring vertical settlement on the surface of embankments, fills, and soil masses during and after construction. It provides a stable reference point for accurate, repeatable elevation measurements over time, making it an essential tool for geotechnical performance monitoring.

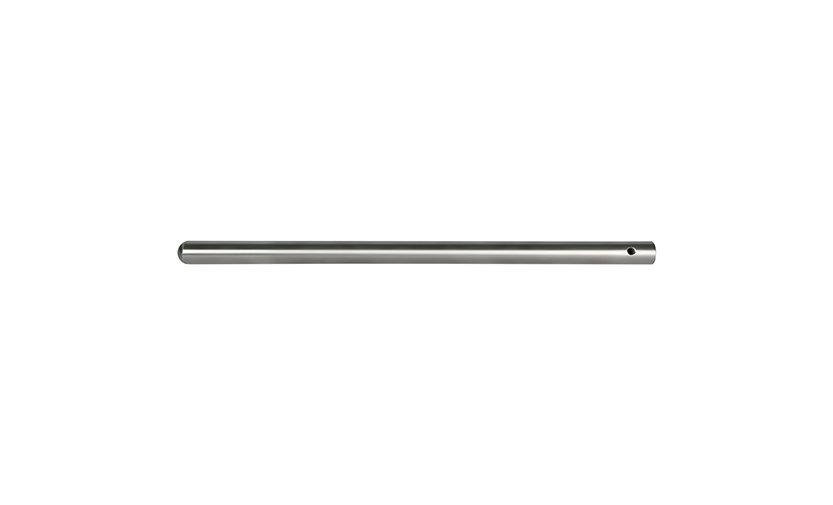

The assembly consists of a survey pin fabricated from AISI 304 stainless steel, featuring a hemispherical top with a red reference dot for precise optical sighting. The pin is attached to a mild steel (MS) extension rod and supported by a grouting plate for secure embedment in the ground. An outer PVC protective sleeve prevents corrosion and damage to the assembly.
A heavy-duty, lockable protective cover (ordered separately) can be installed to safeguard the top of the instrument from mechanical impact or unauthorized access, ensuring reliable long-term operation in field conditions.
Specifications
| Parameter | Description |
|---|---|
| Instrument type | Settlement Point |
| Purpose | Monitoring vertical settlement on soil and embankment surfaces |
| Material | AISI 304 stainless steel (survey pin), mild steel (extension rod & plate), PVC (protection sleeve) |
| Top design | Hemispherical head with red dot for optical leveling |
| Protective cover | Heavy-duty, lockable (optional accessory) |
| Measurement method | By digital auto level or optical level |
| Reference procedure | Initial benchmark reading before construction; subsequent readings compared to baseline |
